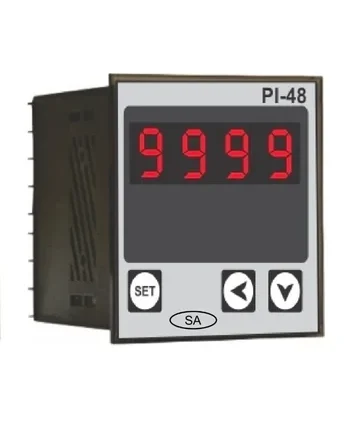

Process Control Instrument- [ABM]
Process Control Instrument- [ABM] Original price was: ₹1,499.00.Current price is: ₹972.80.

THUMBWHEEL TIMER – [ABM]

Original price was: ₹1,699.00.Current price is: ₹1,102.60.

  • Range : 999,99.9 SEC/MIN
  • Output : 1 Relay 2C/O 5A,230V AC,(Resistive load) & SSR 12V max 20mA DC
  • Operation Mode : Delayed ON / OFF Configurable
    • Counting Direction : UP/DOWN (COUNTING )
    • MEMORY : YES / NO
BREAKING CAPACITY

230V AC,50Hz
MODEL

ADT-1310, ADT-2312, ADT-4310
Clear
Compare
Add to wishlist
Description
  • DIGITAL PRESETABLE TIMER
ABM - INSTRUMENT
ABM - INSTRUMENT
While ADT (a home security company) does not appear to manufacture thumbwheel counters, the acronym ADT is used by at least one manufacturer of industrial timers that use thumbwheels for setting values. For clarity, it is important to distinguish between the two different uses of "ADT".
Industrial thumbwheel counter (ADT brand)

In an industrial context, a thumbwheel counter is a device used for precisely setting and counting values in manufacturing and process control. An ADT brand model, the

ADT 1310

, is a multi-range timer that uses thumbwheels for setting values, not a counter.

Key features of this type of device include:
  • Time setting: A series of thumbwheels on the front allows for a precise, numeric setpoint to be easily entered.
  • Display: It features a digital LED display for a clear indication of the time.
  • Functionality: It operates as a timer, not a counter, and is used in industrial control panels for automating processes.
  • Output: The device provides relay outputs to control external equipment based on the timed process.
ADT Security
This refers to the well-known home security company, which does not produce thumbwheel counters. Modern ADT security systems primarily use digital keypads, touchscreens, and smartphone apps for system control. Older ADT equipment, like many systems from the past few decades, may have used physical keypads but never thumbwheel-style counters.
General thumbwheel counter
Regardless of brand, a general thumbwheel counter functions as a device with a series of numbered wheels that are manually turned to set a specific count.
  • It is used in a range of applications, including production monitoring, inventory tracking, and quality control.
  • Many industrial models feature a digital LED display, offer multiple count modes, and include inputs for external sensors.The "

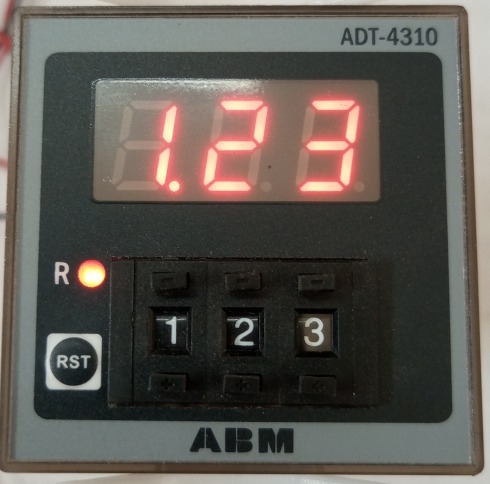

    ADT-2312

    " and "

    ADT-4310

    " are digital presettable timers used for industrial automation, not traditional thumbwheel counters. The "ADT" prefix is a brand name used by some manufacturers, such as Alfa Instruments and ABM Instrument.



    These are the key features of the

    ADT-2312

     and

    ADT-4310

     timers:

    • Time setting: While digital, their values are often set using thumbwheel switches, which give the user a tactile and precise way to enter a numeric setpoint.
    • Display: Both models feature a 3-digit, 7-segment red LED display for clear visibility.
    • Functionality: They function as timers, not counters, and are used for controlling time intervals in manufacturing and industrial processes.
    • Programming: The time ranges for these devices are configurable via DIP switches.
    • Output: They typically provide a relay or solid-state relay (SSR) output to control external equipment.
    • Power supply: They can operate on a standard 230V AC power supply.

    Comparisons with similar models
    • Multispan MDT-2312F and MDT-4310: These are similar industrial timers with thumbwheel setting from another manufacturer, Multispan. The MDT-2312F, for example, is a 3-digit, multi-range timer with a 72mm x 72mm size.
    • Thumbwheel counter: Although functionally distinct, these timers share design similarities with industrial thumbwheel counters. While a timer measures a time interval, a thumbwheel counter tracks the number of events, such as strokes or items passing on a conveyor.
