Oil Tight Limit Switches
HSN Code : 85365010
Surdhi innovation throughout...
Surdhi innovation throughout...
The SDVL oil-tight limit switch is a heavy-duty rotary limit switch manufactured by Surdhi (Super Engineering Works), an electrical components company in India. It is designed to function reliably in harsh industrial environments that expose machinery to oil, water, dust, and other contaminants.
Key features :-
Key features :-
- Enclosure: The enclosure is made of pressure die-cast aluminum and is compact, dustproof, and vermin-proof.
- Protection rating: It has an IP-67 protection rating, meaning it is completely oil-tight and water-tight.
- Contacts: Features snap-action contacts with a configuration of one normally open (NO) and one normally closed (NC). Contacts are made from a special silver alloy to ensure reliable operation, even at low voltage.
- Durability:
- Mechanical life: Up to 20 million switching operations.
- Operating temperature: Functions in a wide temperature range of -20°C to +65°C.
- Electrical specifications:
- Thermal current: Rated at 10A.
- Electrical rating: 1.5A at 50Hz.
- Utilization category: AC 15 and DC 13, per standard 60947-5-1.
- Modular design: The contact blocks can be easily replaced without affecting the operating characteristics of the switch.
Available SDVL variants and actuators
The SDVL series is available with several different operating heads to suit various applications.

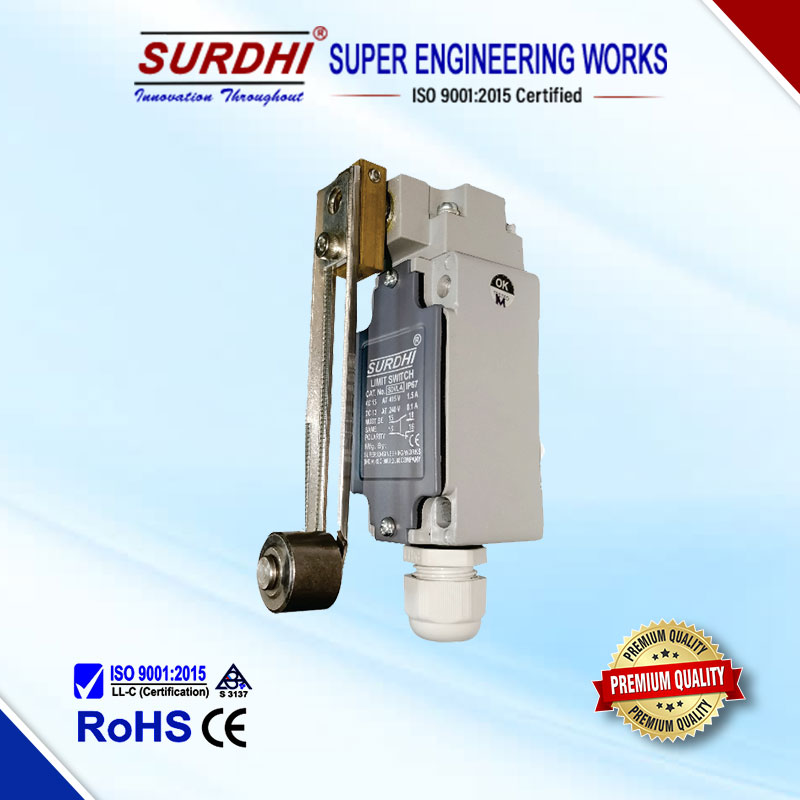

- SDVL-A: Features an adjustable metal roller lever, with a metal head, that can be adjusted from 32 mm to 82.5 mm.

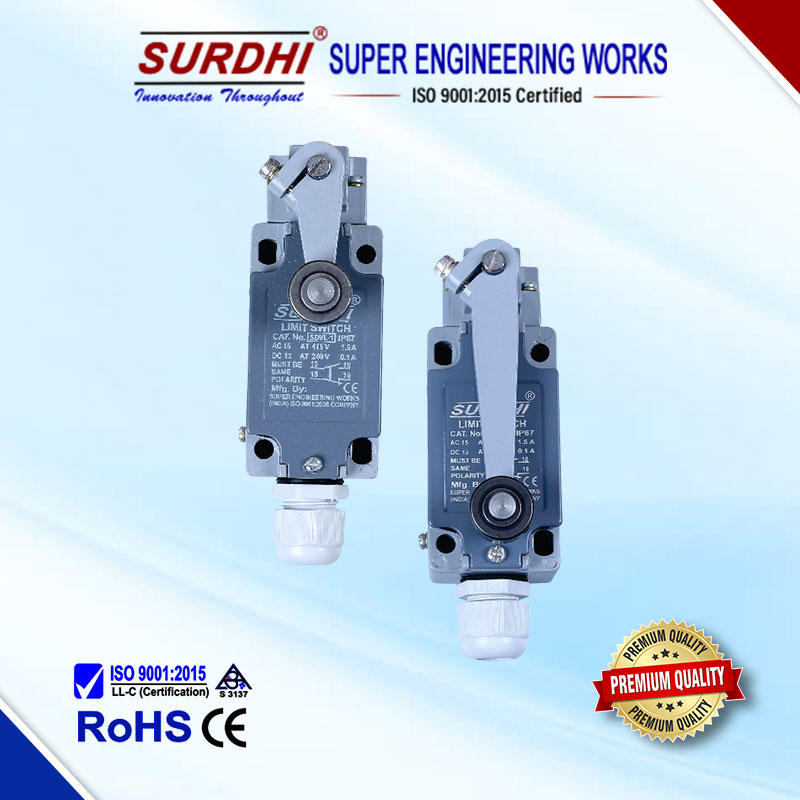

- SDVL-1: Equipped with a metal roller lever that is 38 mm long.
- SDVL-2: Features a metal roller lever that is 76.2 mm long.

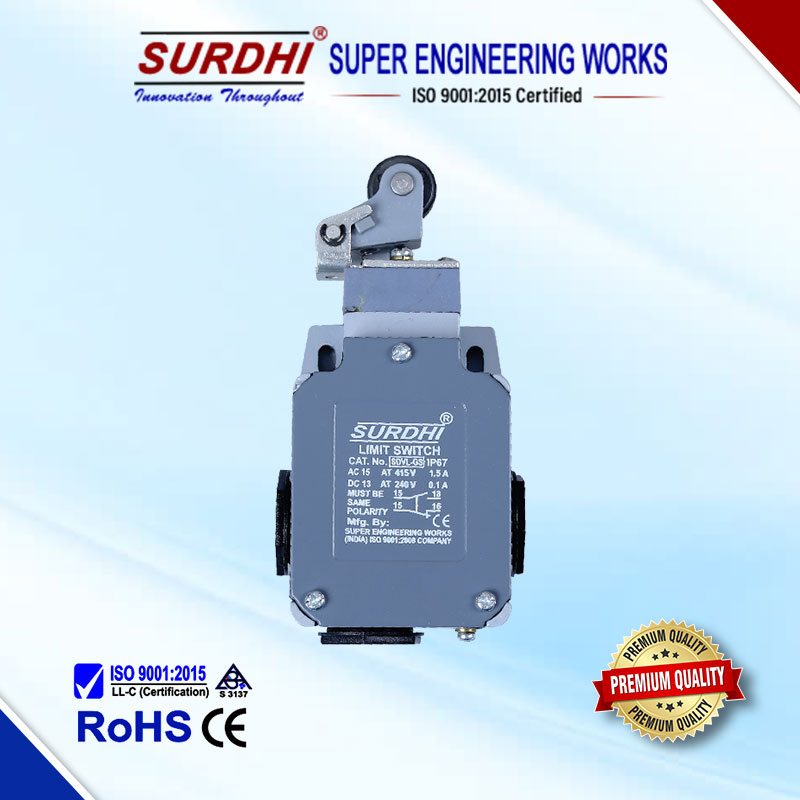

- SDVL-GS: A general-purpose angular roller limit switch.
- SDVL-TPR: A top push roller-operated switch.
- SDVL-SPR: A side push roller-operated switch.
- SDVL-SPBA: A side push bolt-operated adjustable switch.
Description : Roller Lever 38 mm long with 19 mm Dia 8 mm wide Metal Roller -Metal Head.
Code : SDVL-1
Unit Price : 1070.00
