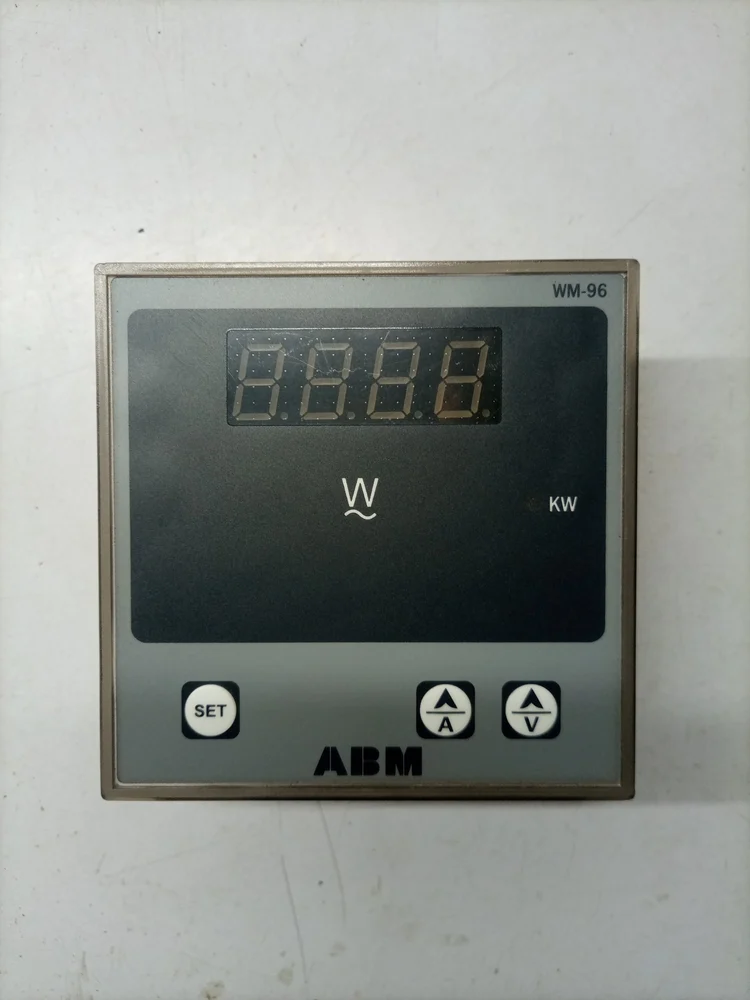

DIGITAL WATT METER – [ABM]

Original price was: ₹2,599.00.Current price is: ₹1,686.70.

  • MODEL : WM-96
  • DISPLAY : LED Display
  • VOLTAGE : 230V AC
  • APPLICATION : WATT Meter
  • BRAND : ABM
  • IN STOCK
  • A Double Display Programmable Timer is a versatile time control device with two digital displays that show both the remaining time and the preset time
Compare
Add to wishlist
Description
  • SINGLE PHASE WATT METER
  • WM- 96
ABM - INSTRUMENT
ABM - INSTRUMENT

The WM 96 is a designation used for various panel-mounted single-phase watt meters, typically with a standard 96x96 mm panel cutout. Different manufacturers produce models under this general size or similar model numbers .

specific features and technical data.

Type: Available in both analog and digital (microprocessor-based with LED or LCD display) versions.

  • Dimensions: Standardized 96 x 96 mm bezel size for panel mounting.
  • Input Type: Designed for single-phase, two-wire systems.
  • Measurement: Measures active power (kW or Watts). Some digital power analyzers in this size (e.g., Carlo Gavazzi WM2..96 series) can also measure voltage, current, power factor (PF), and energy (kWh).
  • Voltage/Current Ratings: Typical voltage inputs range around 230V AC or 300V AC (line-to-neutral). Current measurement often uses a Current Transformer (CT), with common secondary ratings of 1A or 5A and primary selection up to a few thousand Amperes.
  • Accuracy: Typically Class 1.0 for digital meters and Class 1.5 or 2.0 for analog meters.
  • Auxiliary Power: Requires an auxiliary supply, commonly 220V AC or 230V AC.
  • Display: Digital models usually feature a 4-digit, 7-segment red LED display.
  • Protection: Front panel typically has an IP65 degree of protection.
  • Optional Features: Some advanced digital models offer optional pulse outputs or serial communication ports (RS 422/485 with MODBUS protocol).

To get the most accurate information for a specific "WM 96" model, it is best to refer to the manufacturer's official datasheet or manual, as specifications can vary widely between different brands.

Common Applications
These meters are primarily used in industrial settings for monitoring power consumption in:
  • Power distribution panels
  • Motor control panels
  • Gensets
  • Various process control and machinery applications
Note on Variation
The term "WM-96" is a general size and function descriptor rather than a specific model number across all brands. Advanced "WM..96" series (e.g., Carlo Gavazzi WM3-96, WM5-96) might include full power analysis capabilities (voltage, current, power factor, energy, harmonics) and communication protocols like Modbus
