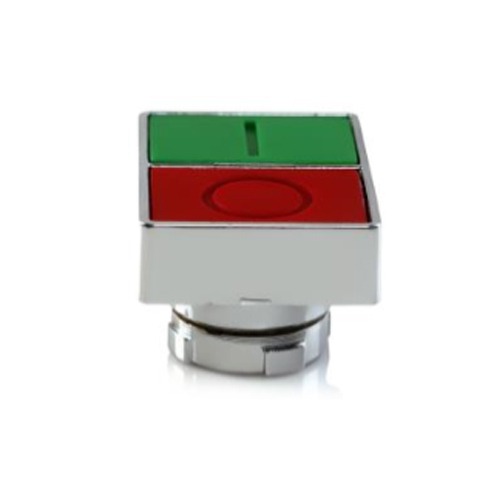

Twin Actuator [SURDHI]

Surdhi's "Twin Actuators" are modular control components designed for industrial panels, allowing two separate push-button functions—typically "Start" (Green) and "Stop" (Red)—to occupy a single 22.5 mm cutout.
When sold  it refers specifically to the mechanical  only. This allows for customization, as the user must separately purchase and snap on the required electrical

(elements) based on their specific circuit needs.

Product Specifications & Variants

• Model Number: Common variants include the
  SDV-LDDBL
   (Luminous) and standard non-luminous twin buttons.
• Modular Design: The actuator is mounted onto a panel door using a holder and then "twist-latched" into place.
• Contact Compatibility: These actuators are typically compatible with NO (Normally Open) or NC (Normally Closed) contact blocks, such as the Surdhi SVD-1 or SVD-2 series.
• Voltage Options: For luminous versions, they support a wide range of supplies including 12V, 24V, 48V, 110V, 240V, and 440V AC/DC.
• Color Coding: Standard configurations feature a green button for starting and a red button for stopping or emergency functions.
  Usage and Installation
• Space Saving: Ideal for applications where panel depth or surface area is limited, as it combines two controls into one unit.
• Industrial Durability: Features rugged construction, often with IP-67 protection for oil-tight and water-tight performance in harsh environments.
• Ease of Wiring: Designed with captive screws and funnel-shaped cable entrances to reduce installation time

Description :Twin Actuator
Cat No.: SDV-DB
Unit/Price : 157.00
